High Quality Metal 3 Hole Straight Groove Guy Clamp 3 Bolts Hardware Cable Clamp for overhead
Publish time 2023-02-23 12:17

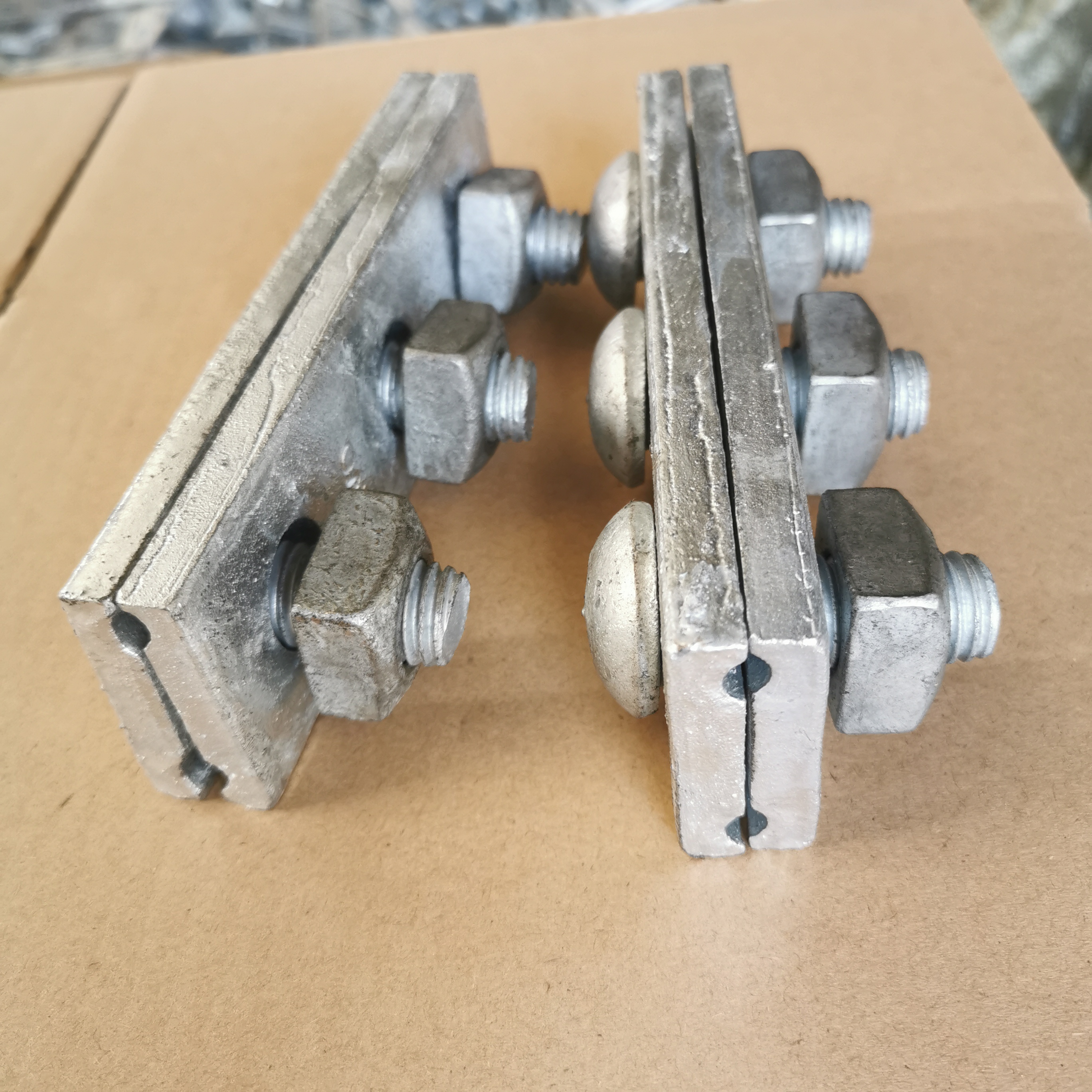

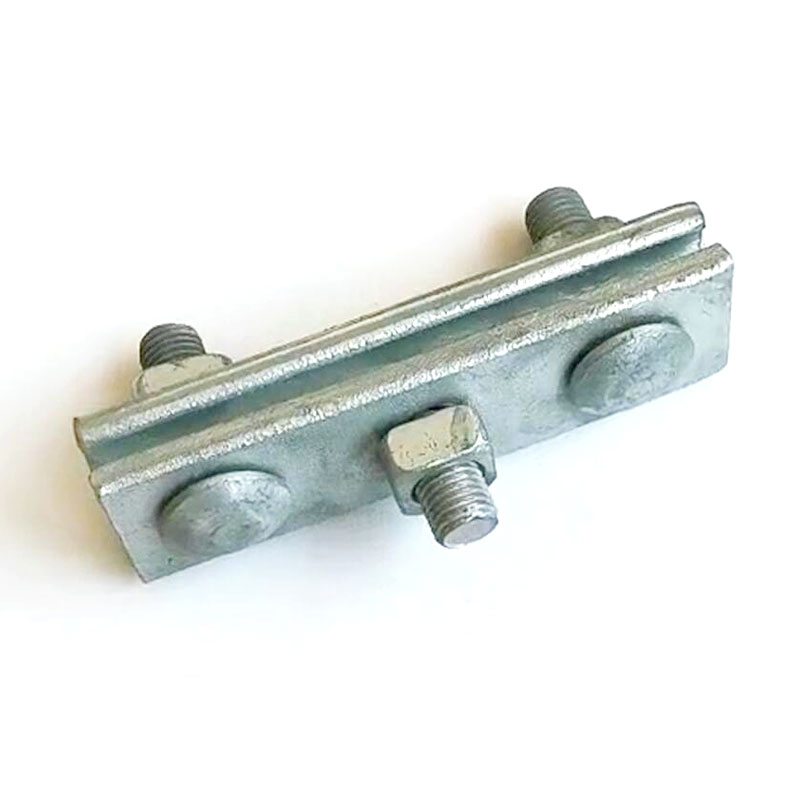

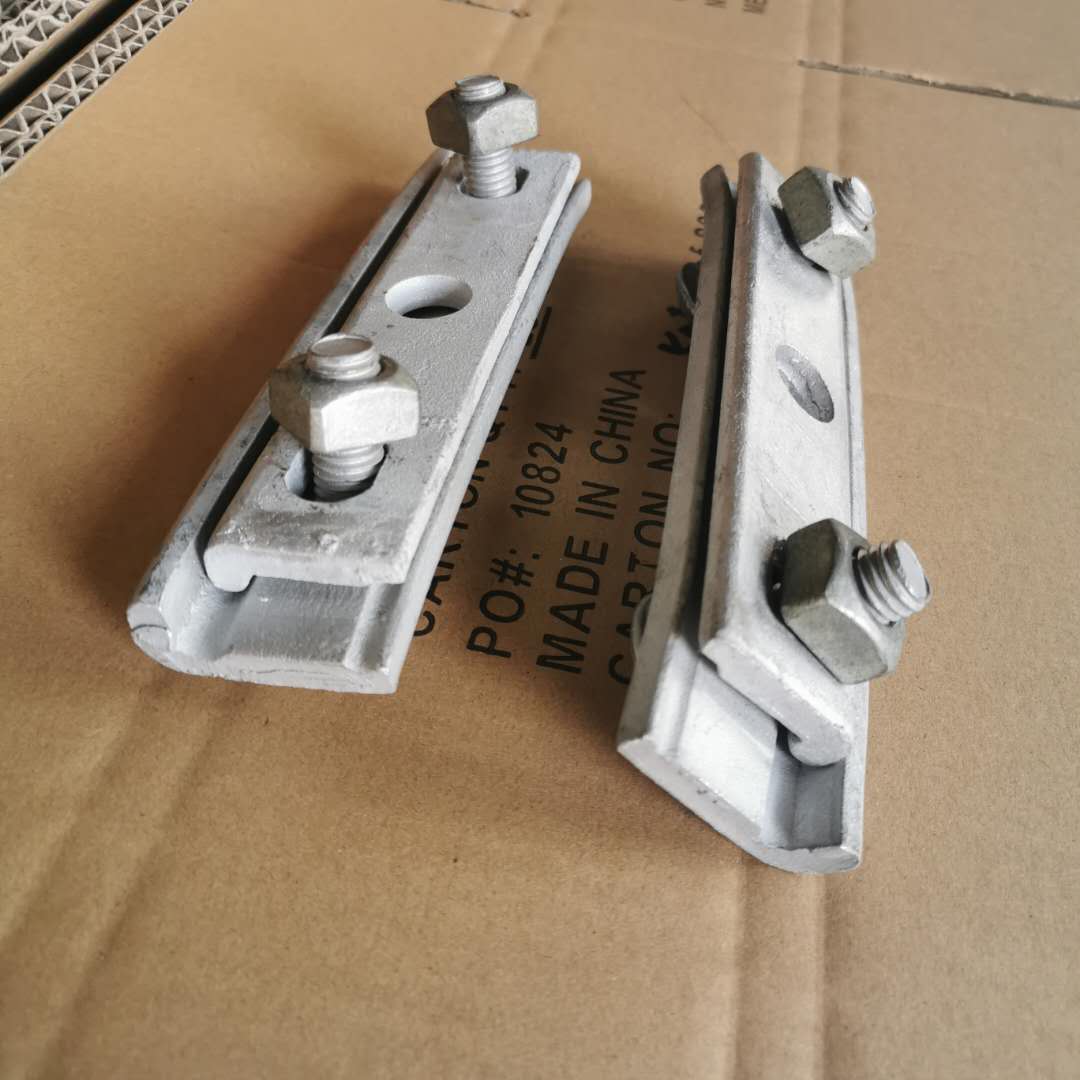

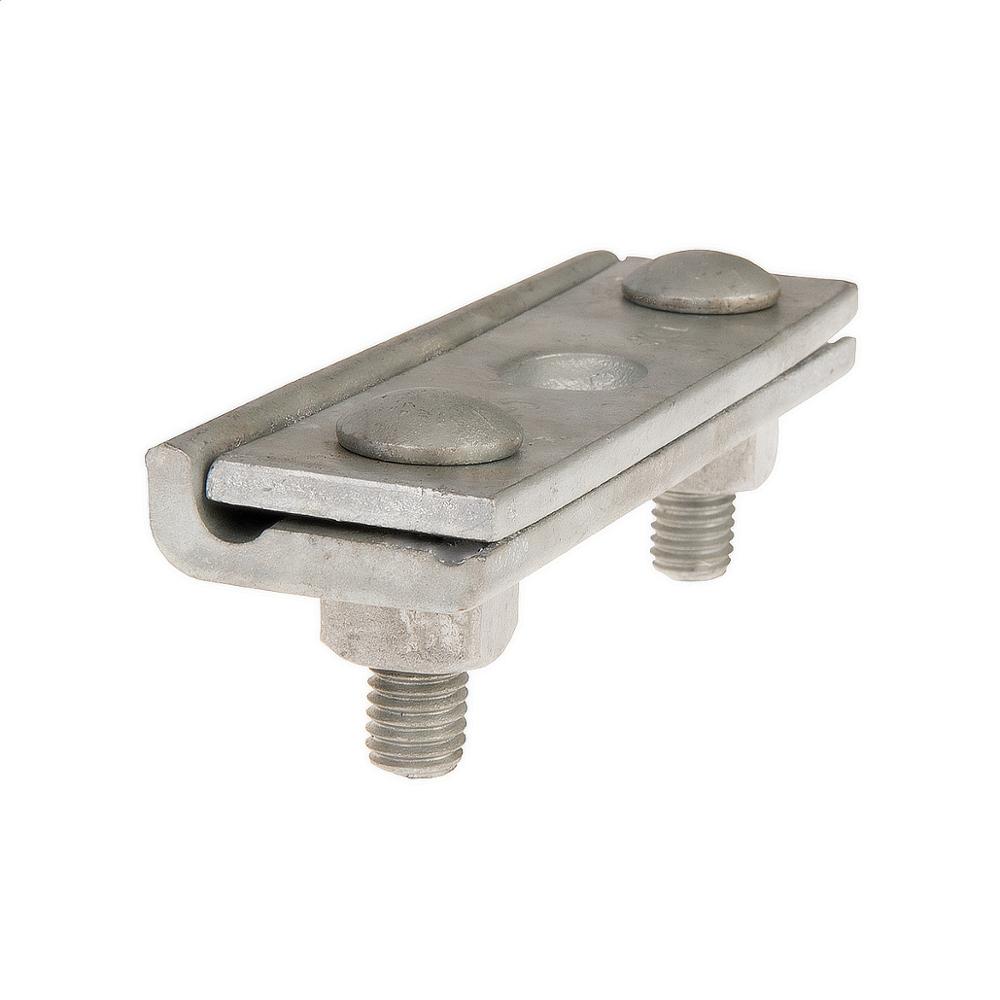

Guy Clamp is used to secure/hold the ends of the guy strabd wires. Clamps are shipped with bolts assembled, and clamping bolts have oval shoulder to prevent turning when nuts are tigtened.
The heavy duty clamp are drop forged from basic openhearth carbon steel material with straight parallel groove.
If you need more product, please send me a inquiry.
Specification
Model NO.
No.of Bolt
Bolt Diameter Inch
Clamp Dimension mm
Approximate Ship Weight kg./100PCS.
Standard Pkg.Qty./
Carton
Length
Width
Thickness
HEAVY DUTY-DROP FORGED
0101-H1
1
1/2
42
44
9.1
30.50
50
0101H2
1
5/8
50
44
9.1
35.00
50
0102-H1
2
1/2
62
44
9.1
60.00
50
0102-H2
2
5/8
70
44
9.1
64.50
50
0103-H1
3
1/2
100
44
9.1
103.50
40
0103-H2
3
5/8
152
44
9.1
122.00
30
LIGHT DUTY-PRESS FORGED
0101-L1
1
1/2
42
44
8.3
24.40
50
0101-L2
1
5/8
50
44
8.3
28.50
50
0102-L1
2
1/2
62
44
8.3
48.40
50
0102-L2
2
5/8
70
44
8.3
53.00
50
0103-L1
3
1/2
100
44
8.3
83.00
40
0103-L2
3
5/8
152
44
8.3
97.50
30
Feature: Pressure pad ensuring uniform pressure along the clamp Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact.
Application
Parallel grooves trap strand tightly without marring. Plate halves align evenly for easy application. Each bolt has a shoulder to prevent turning while tightening.
Features straight parallel grooves for greater clamping area without damage to guy strand. Bolts have shoulders to prevent turning when nut is tightened. Alternate bolts are reversed for wrench clearance.
Related Products
Packing & Delivery
Delivery: 5-7 working days, depends on quantity. Packing: Export cartons with wooden pallet
