Plastic Anchor Clamps For Overhead Service Cables:
 This Conical wedge clamp composed of an opened thermoplastic body with very high mechanical and climatic resistance,

an inner sheath consisting one or two insulating plastic wedges ensuring the clamping of the neutral messenger without damaging cable insulation.

Two stainless bail ends are compressed on it to lock intoclamp. Simple assembling because the wedges open by pulling them back. The flexible steel
loop can be fixed into a closed eye bracket.

Advantage:

They are characterized by high mechanical stability,reduced dimensions for easier handling,high mechanical and climatic.

Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath,secured parts,no tools required.

Stainless steel bail with two marbles compressed on the end,this conception allows an easier locking on the body of the clamp.

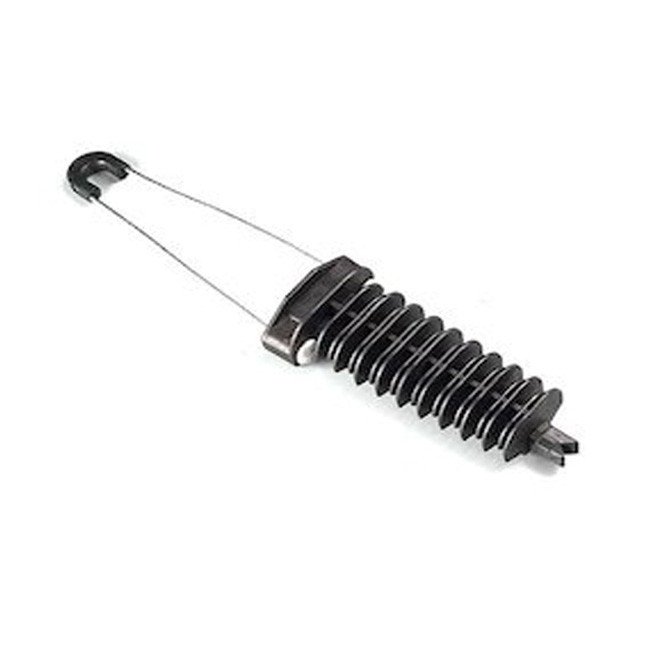

Plastic Anchor Clamp:
1.The body is made of UV resistant glass fiber reinforced synthetic material
2.Then handle and Hook have good corrosion resistance
3.All of the elements are captive

These anchoring clamps are made of one opened conical fibre glass reinforced body, a pair of plastic wedges and a flexible bail.

Different sizes offer a wide range of gripping capacities and mechanical resistances to fit the various ADSS cable designs.
The ADSS series of anchoring clamps allow an easy and quick securing of Ø 6 to 20 mm aerial circular fibre optic cables (ADSS) on short spans (up to 150 meters).

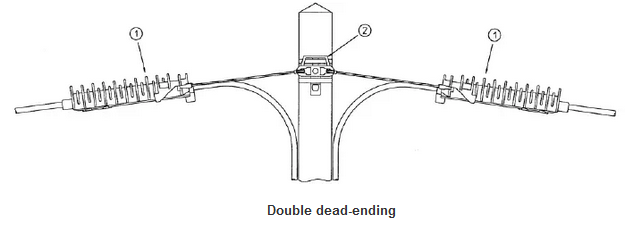

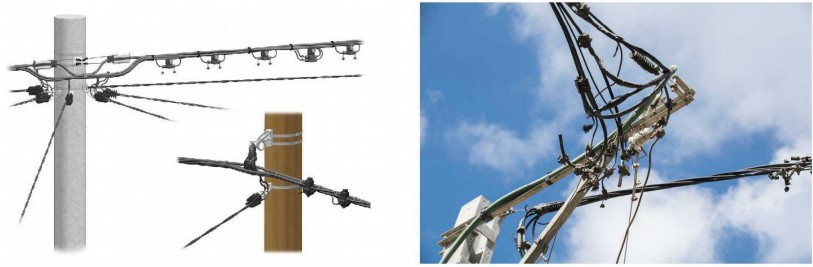

Installation Pictures:

Pls kindly noted:If you need more product or some information,pls contact me directly or send an inquiry,thanks! :)

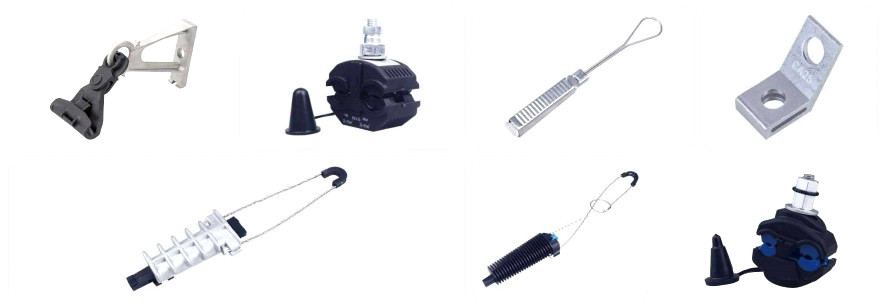

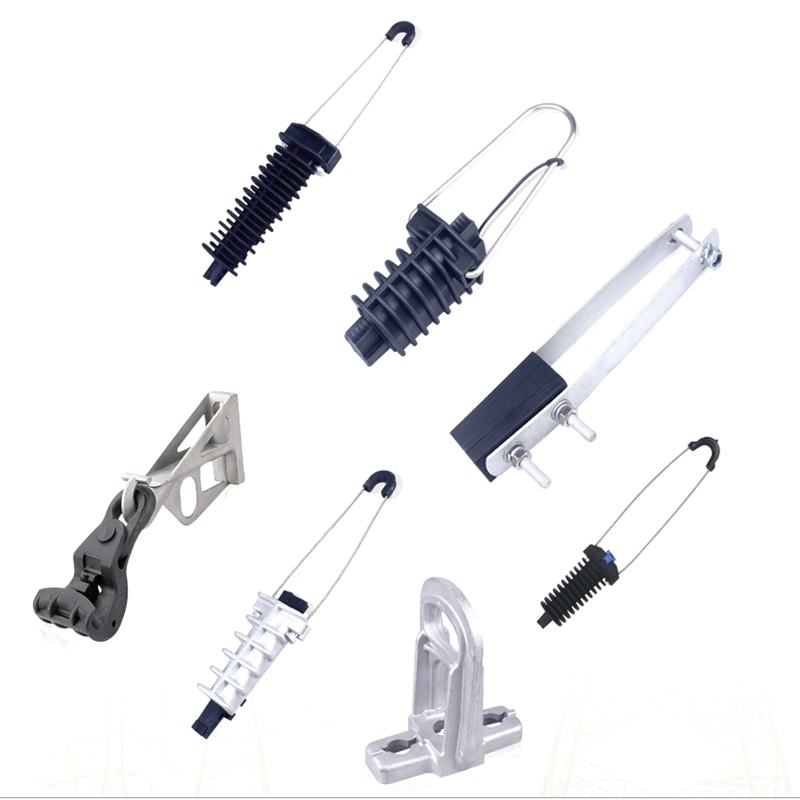

Anchor Clamp,Suspension Clamp;Bracket:

Metal Anchor Clamp:

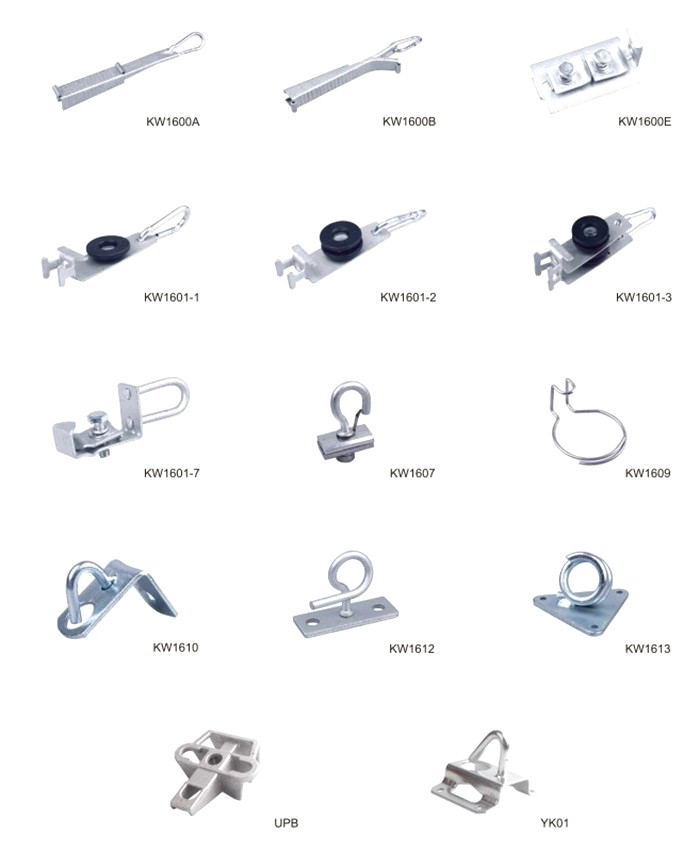

ADSS Connecting Clamp And Bracket:

1.Light weight
2.Easy to install
3.Hight Quality
4.Against corrosion, can be used for a very long time
5.Warranty & Long life
6.Hot dip galvanized surface tratment, against rust and corrosion
