Specification
Type | Parameters |
Insertion loss | ≤ 0.3dB (1310nm & 1550nm) |
Return loss | ≤ -45dB |
Bare fiber strength | >5N |
Clad strength | >10N |
Tension | >50N |
Mechanical durability (500times) | IL ≤ 0.2dB & RL ≤ 5dB |
Operating Temperature | 5 ºC to +70 ºC |
Application
Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber / Home (FTTH) applications
Repair/replacement requirements
Equipment test leads
Features

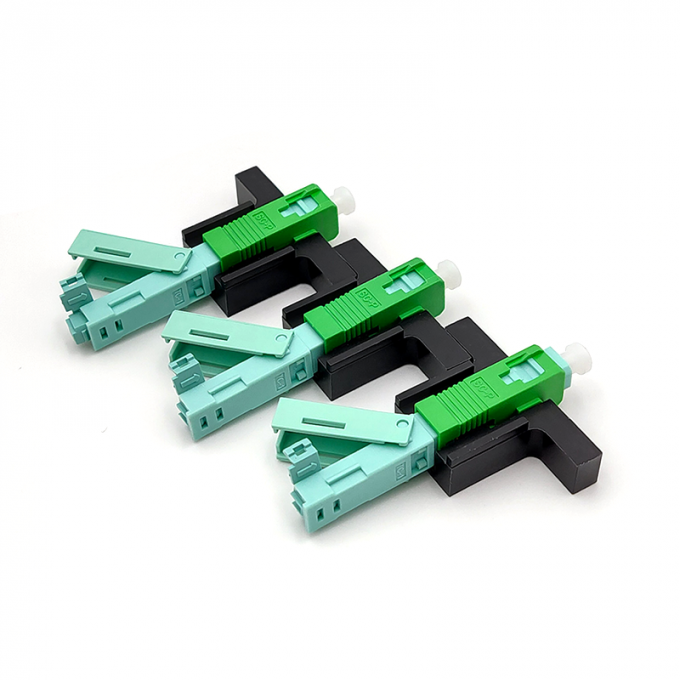

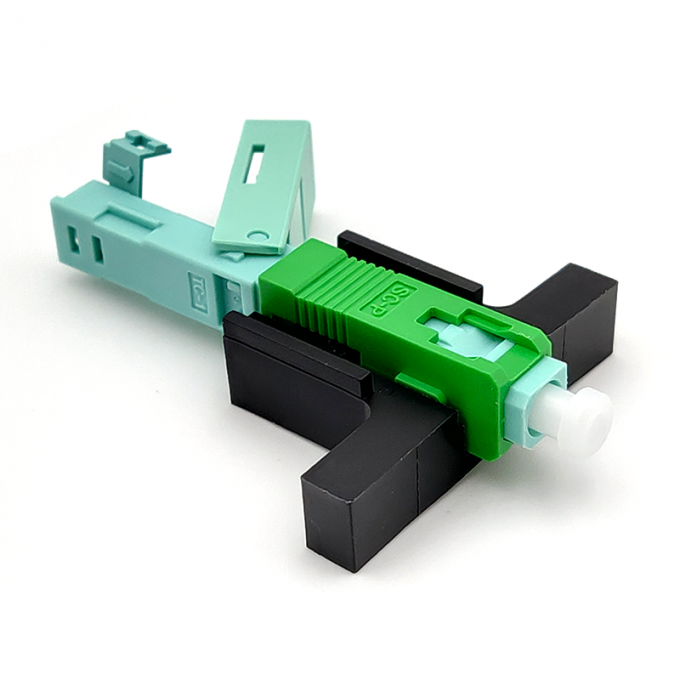

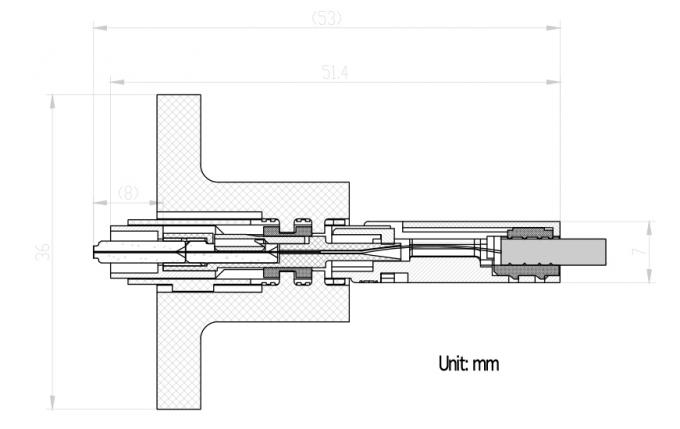

Precise mechanical dimensions
Low insertion loss, high return loss
Comply standard of IEC61754-4
Repeatable times is no less than 50 times;
Long life span design, more than 30 years.
Provide Open flow and Pre-cast type of products
Adopting fiber pre-installed structure
Convenient for field installation
No epoxy or polishing required, easy assembly in the field
Fiber termination can be reset, save time and energy ,reduce scrap
No need special too, readily available
Pack Information:

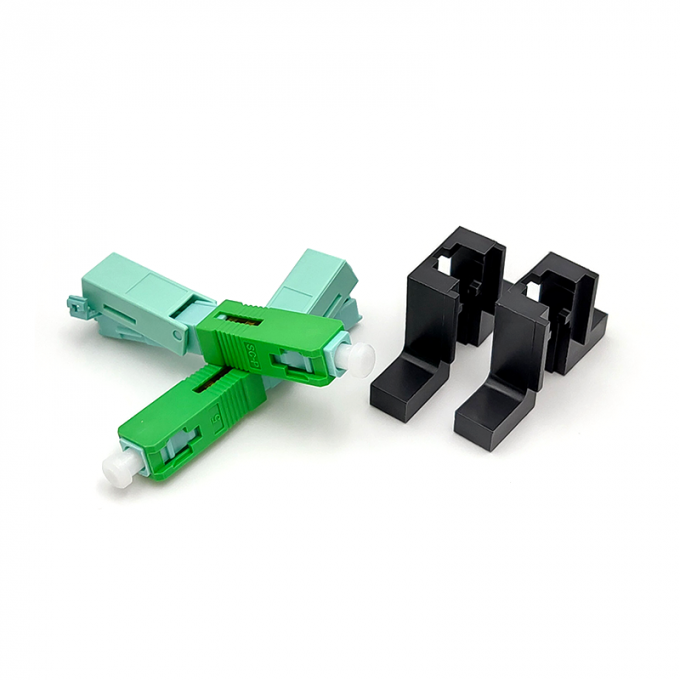

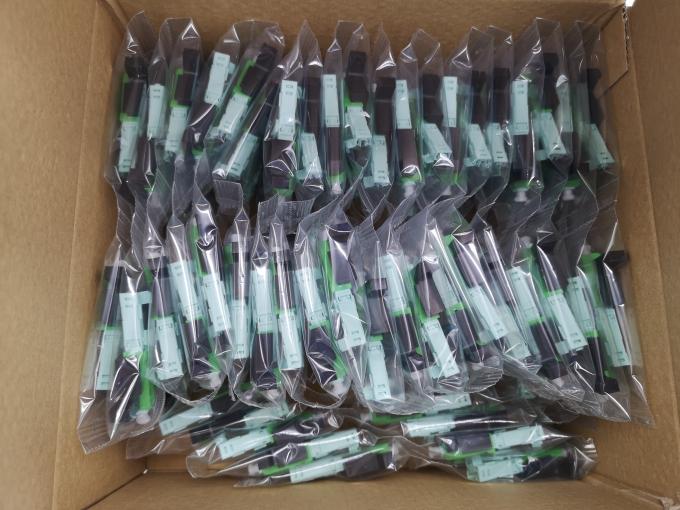

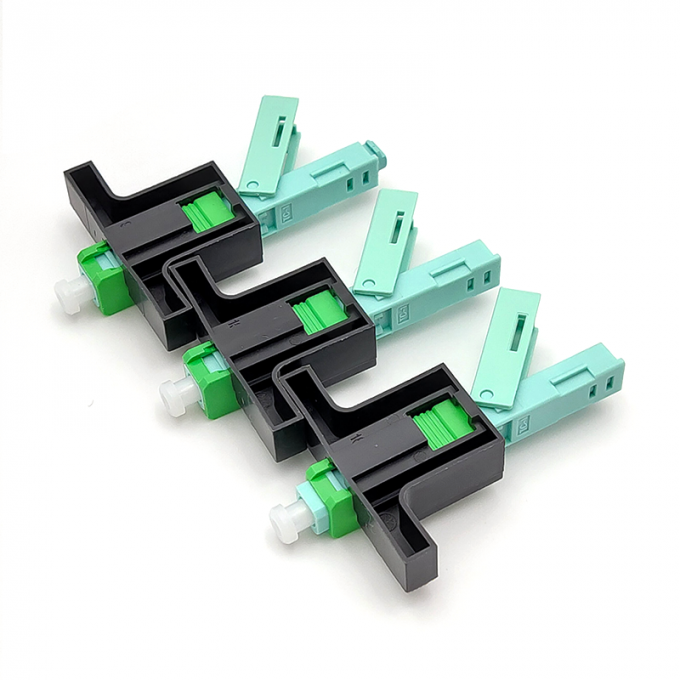

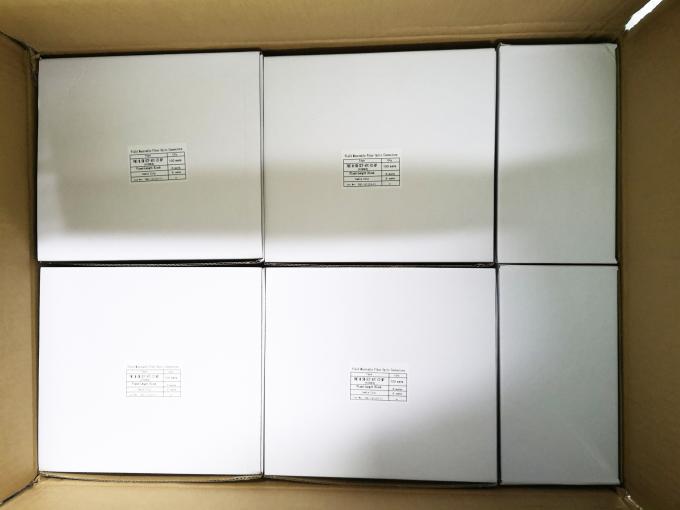

1pc/plastic bag, 100pcs/inner box, 10pcs inner box/carton box
English User Manual: 1pcs/100pcs inner box
How to use the fast connectors?

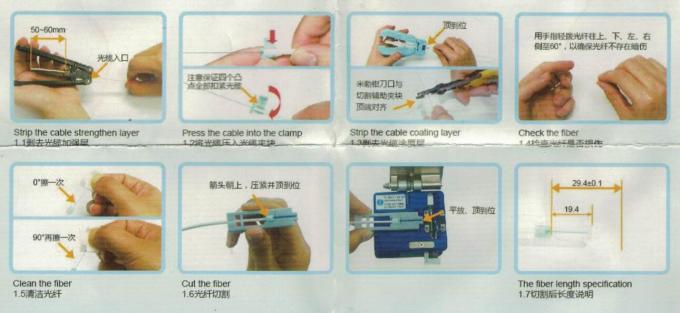

Process the fiber
1. Insert the drop cable into the stripper till 50-60mm out, and strip the cable strength layer
2. Press the stripped cable into the clamp, there are 4points to lock the fiber
3. Strip the cable coating layer by the insert the longitudinal fiber stripper to strip the coating of the fiber. Or use Miller stripper align of the fiber clamp.
4. Check the fiber by bending about 60°into direction if ok
5. Clean the fiber with alcohol cloth by 0°wipe and 90°again
6. Put the clamp into the length fixer till arrow up, and press to the end
7. Lay flat on the fiber cleaver slot, align to the end, and then cut the fiber
8. Finally the fiber length will be :19.4mm and 29.4±0.1mm,see picture

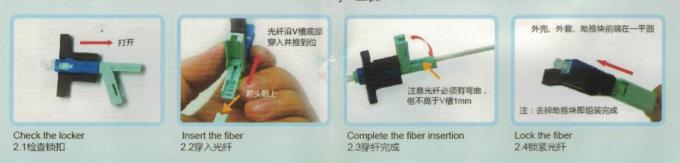

Assembly
Check the black locker
Insert the fiber along with the V entrance till fiber bend, but not higher than 1mm than V entrance
Keep housing, coating, and jig on the same level, take off the switch.
Dis-assembly
Assemble the auxiliary jig,fit on switch to the right end
Unlock the fiber
Use the exclusive convex to open the cover, unlock the shell
Raise 15°to pull out the fiber
