Fiber Optic Fast Field Installation Connector ESC250D
Publish time 2022-11-25 12:43
ESC250D/APC Fiber Optical Field Assembly Connectors
Fast Connector are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

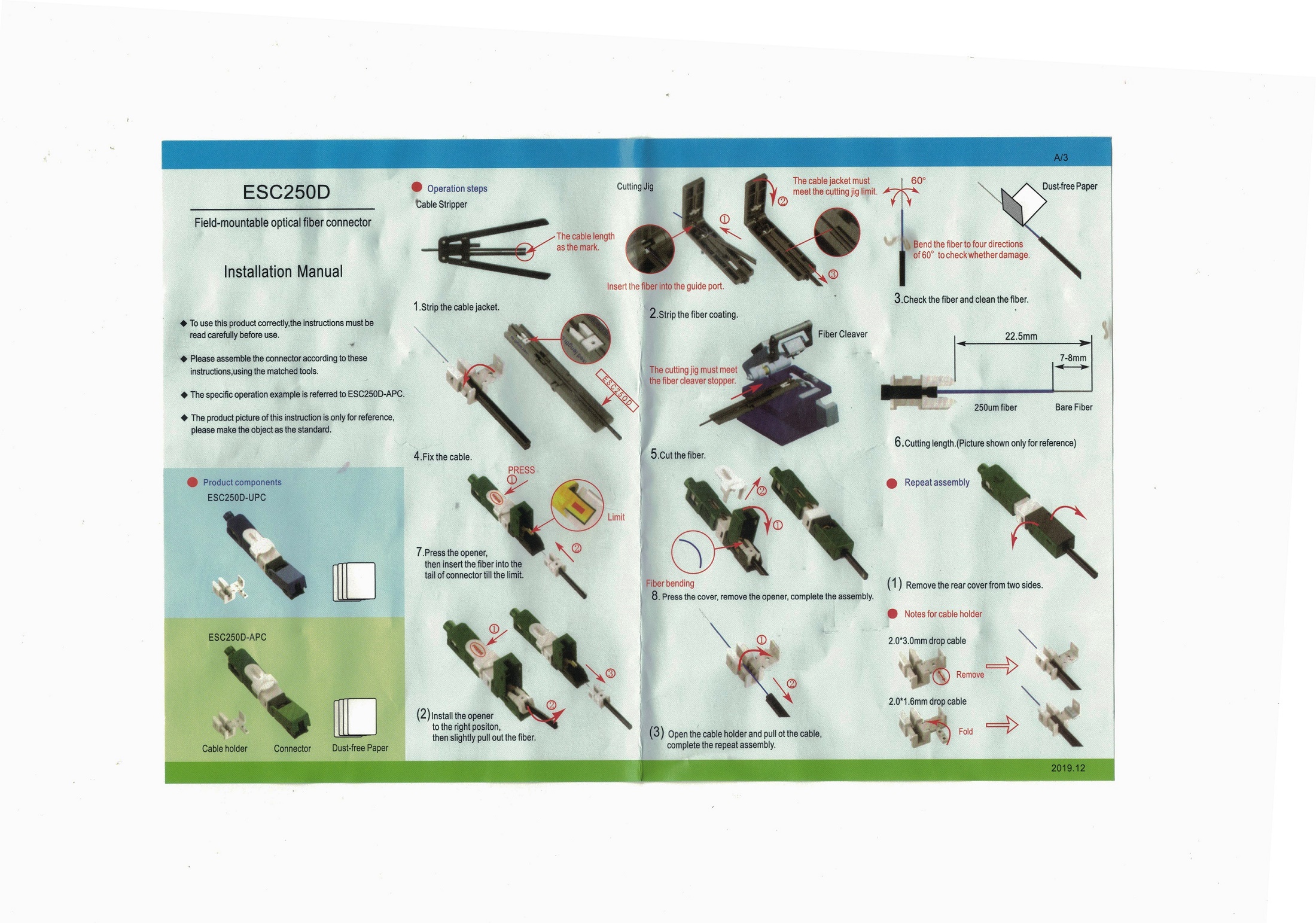

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installation optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a
factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this on-site assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Features
Linkage structure design, and equipment, connector connection, reserved micro-bend to remain unchanged;
Double V groove structure design, high stability and reliability of fiber connection;
Core structure: adopt the normally closed flexible locking structure, excellent optical performance; Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable;
Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance. Widely used in FTTH network
ESC250D/APC Fiber Optical Field Assembly Connectors
Fast Connector are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.
The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installation optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a
factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this on-site assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Specification
Item
Unit
UPC
APC
Model
ESC250D/UPC
ESC250D/APC
Insertion loss
dB
≤0.25
≤0.3
Return loss
dB
≥50
≥55
Tensile strength
N/2min
＞30
Work temperature
0C
-40～+85
Repeatability
dB
≤0.2
Repeated assembly
times
≥10
Mate-demate
times
≥500
Cable type
mm
2.0×3.0 & 2.0×1.6 drop cable
Product dimension
mm
52*9*8.1
Application:
Premise environments
Connections at the desk for LAN environments Patch panels
Direct equipment termination
Fiber to the Subscriber (FTTx) applications Repair and replacement requirements Equipment test leads
